Car Park Flooring
As urbanization accelerates, the demand for durable car park flooring solutions continues to rise, particularly in office complexes, airports, shopping centers, and residential buildings.
Multi-story car parks, require high-quality flooring systems that can withstand heavy traffic, resist weathering, and enhance safety.
Nippon Paint Car Park Deck System provides innovative flooring solutions for car parks, offering superior durability and weather resistance. Additionally, the Nippon Paint FloorShield series features high-performance floor markings, ensuring clear navigation and enhanced safety in parking facilities.

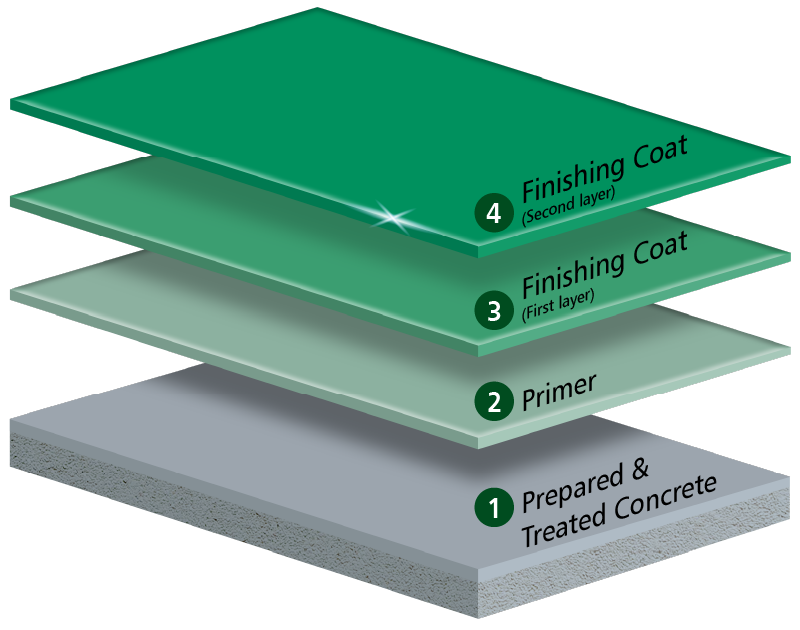

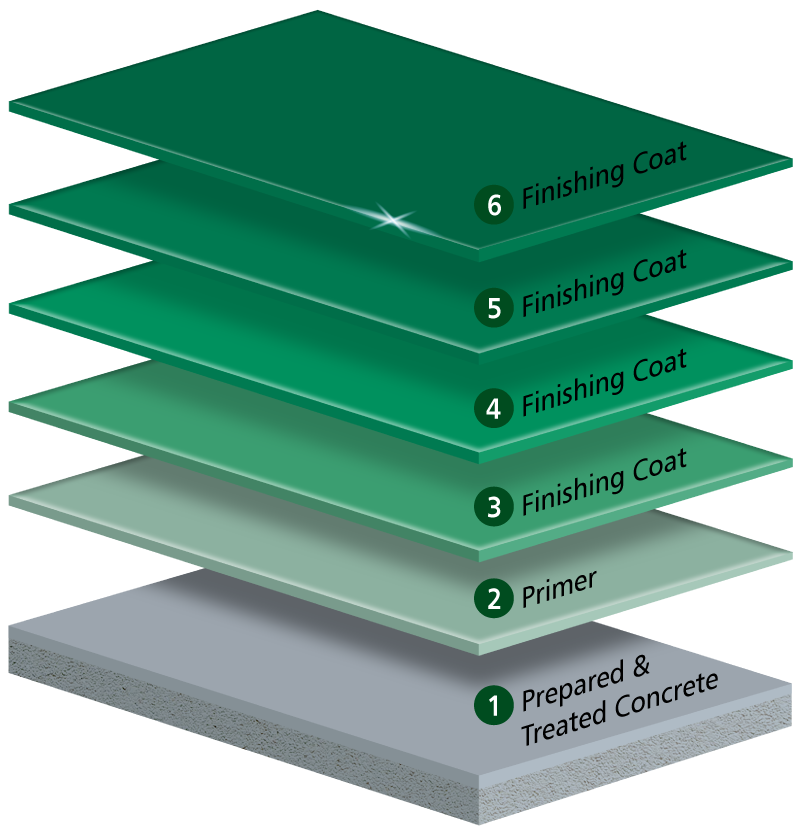

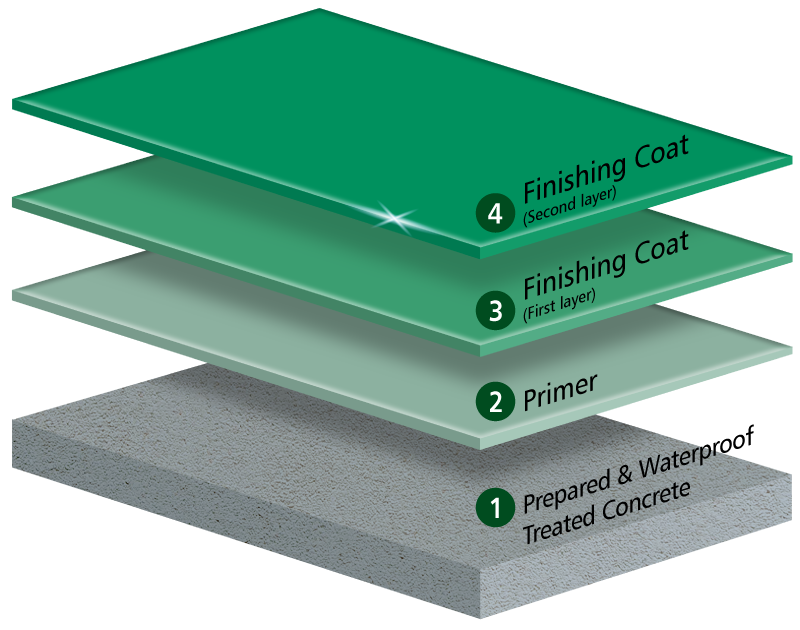

Type of System for Car Park Solutions
Prepared and Treated Concrete
Primer
FloorShield SF Epoxy Primer
- Solvent-free thus no solvent smell
- Low viscosity for penetration
- Excellent wetting of substrate
- Excellent adhesion for overlayment
Finishing Coat
FloorShield SF Epoxy Mortar
- Impact resistance
- 100% Solid thus zero shrinkage
- Independent of air-drift or environment moisture
Finishing Coat
FloorShield SE Epoxy
OP Textured Finish
- Solvent-free thus no solvent smell
- Abrasion resistant
- Chemical resistant
Finishing Coat
FloorShield SF Epoxy Finish
- Solvent free thus no solvent smell
- Abrasion resistant
- Chemical resistant
Finishing Coat
FloorShield SB BU Finish
- Low viscosity provides excellent wetting and over-coating adhesion
- Highly abrasion resistance
- Excellent resistance to fuel, engine oil, and cleaning chemicals
Note: Additional systems are available for Additional anti-skid systems are available for different finishing such as orange peel, and broadcast sand to enhance the skid resistant.
Prepared and Treated Concrete
Primer
FloorShield SF Epoxy Primer
- Solvent-free thus no solvent smell
- Low viscosity for penetration
- Excellent wetting of substrate
Finishing Coat
(First layer)
FloorShield SF Epoxy Finish
- Solvent free thus no solvent smell
- Abrasion resistant
- Chemical resistant
Finishing Coat
(Second layer)
FloorShield SB BU Finish
- Low viscosity provides excellent wetting and over-coating adhesion
- Highly abrasion resistance
- Excellent resistance to fuel, engine oil, and cleaning chemicals
Note: Additional systems are available for Anti-Skid Systems, Orange Peel, Broadcast Sand and PU Anti-skid for enhanced slip resistance.
Prepared and Treated Concrete
Primer
PrimeCrete WB
- Odourless
- Deep penetration
- Excellent bond strength
- Excellent adhesion
Finishing Coat
(First layer)
FloorShield SB BU Finish
- Solvent free thus no solvent smell
- Abrasion resistant
- Chemical resistant
Finishing Coat
(Second layer)
FloorShield SB BU Finish
- Solvent free thus no solvent smell
- Abrasion resistant
- Chemical resistant
Note: Additional systems are available for Anti-Skid Systems, Orange Peel, Broadcast Sand and PU Anti-skid for enhanced slip resistance.
Prepared and Treated Concrete
Primer
FloorShield SF Epoxy Primer
- Solvent-free thus no solvent smell
- Low viscosity for penetration
- Excellent wetting of substrate
Finishing Coat
(First layer)
FloorShield SF Epoxy Finish
- Solvent free thus no solvent smell
- Abrasion resistant
- Chemical resistant
Finishing Coat
(Second layer)
FloorShield SB BU Finish
- Low viscosity provides excellent wetting and over-coating adhesion
- Highly abrasion resistance
- Excellent resistance to fuel, engine oil, and cleaning chemicals
Overview Of Car Park Deck System
| System | Car Park Deck ID Intermediate Deck |

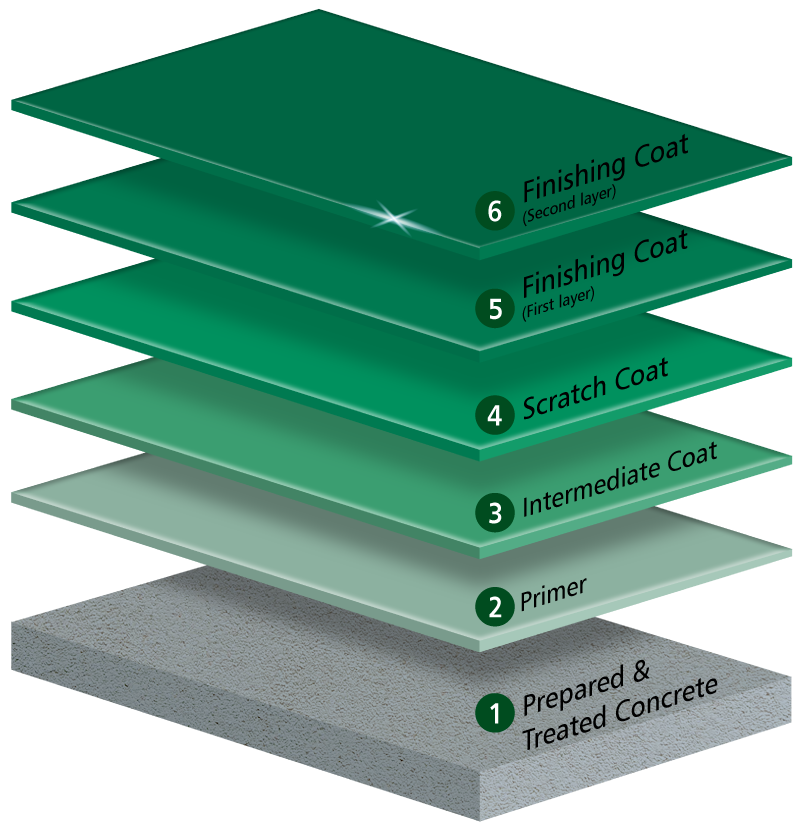

Car Park Deck BD Basement Deck |
Car Park Deck ED Exposed Deck |
Car Park Ancillaries (Lining / Marking) |
|---|---|---|---|---|
| No. of Coats | 4 | 5 | 4 | 3 |
| Total Thickness (mm) | 0.5 - 0.6 | 5.0 - 5.5 | 0.3 - 0.5 | 0.35 |
| Abrasion Strength (ASTM D4060) |
< 80mg / 1000 cycles | < 80mg / 1000 cycles | < 80mg / 1000 cycles | < 80mg / 1000 cycles |
| Adhesion Strength (ASTM D4541) |
<1.5N/mm² | <1.5N/mm² | <1.5N/mm² | <1.5N/mm² |
| UV Light Resistance | Excellent (Non-Yellowing) |
Excellent (Non-Yellowing) |
Excellent (Non-Yellowing) |
- |
| Shore D Hardness (ASTM D2240) |
> 75 | > 80 | - | - |
| Compressive Strength (ASTM D638) |
> 85MPa | > 40MPa | - | - |
| Strength (ASTM C580) |
> 40MPa | > 20MPa | - | - |
