NippoGARD
Preformed Sheet Membrane
NippoGARD is a high-performance sheet membrane waterproofing solution that utilises preformed waterproofing sheets for large surface coverage, ensuring consistent thickness and high durability. Designed to provide seamless and long-lasting protection against water ingress and structural deterioration, it forms a tough, flexible, and highly resistant barrier. With strong adhesion, UV resistance, and chemical durability, NippoGARD is ideal for car parks, bridges, industrial floors, tunnels, basement raft slabs, RC roofs, aprons, and exposed concrete surfaces, delivering superior waterproofing performance while protecting structures from moisture, abrasion, and harsh environmental conditions.
Our Products
Explore our range of NippoGARD preformed sheet membrane products.

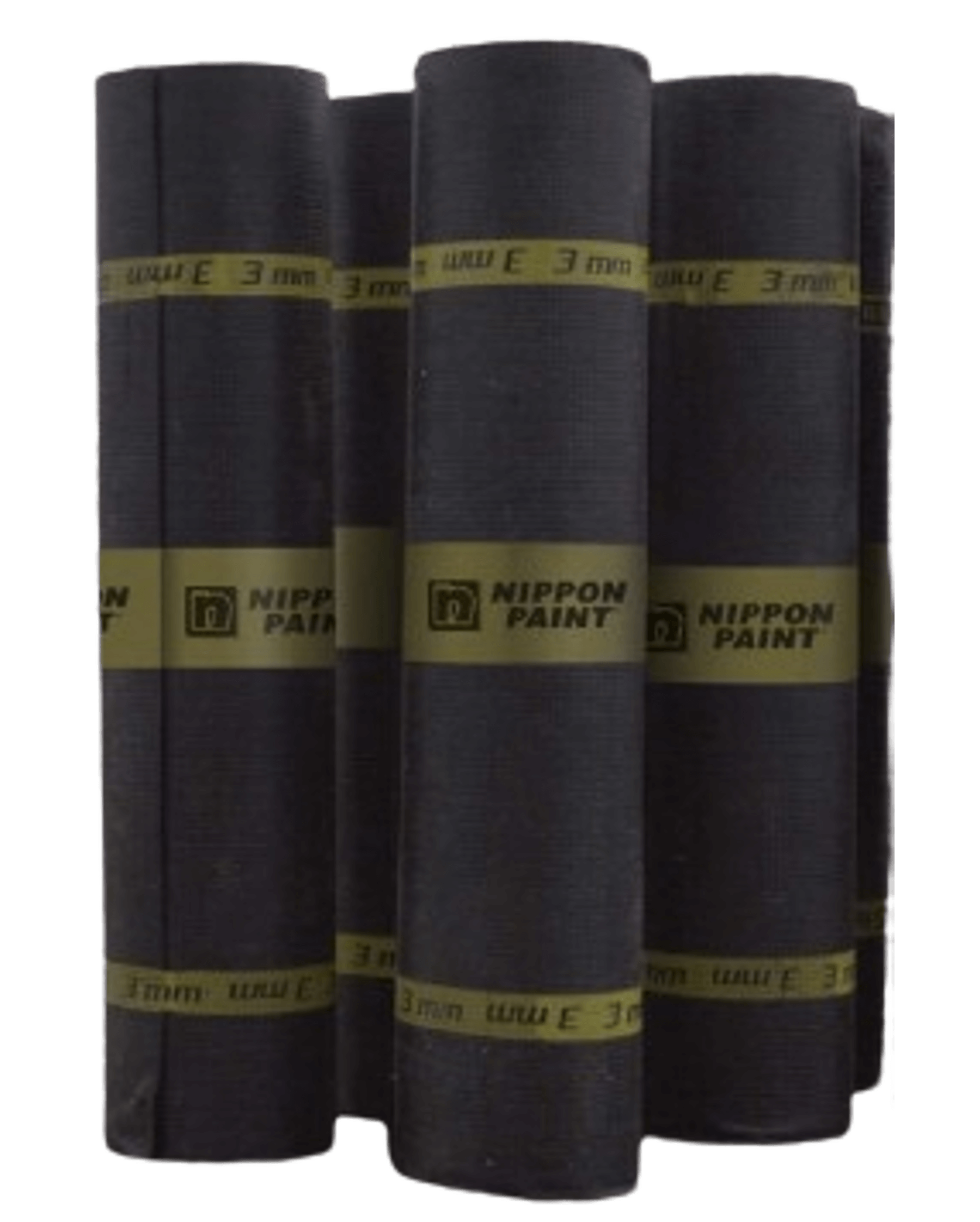

M4000-TA
Formerly known as SM Bitumen M4000
- Atactic polypropylene (APP) modified bitumen waterproofing membrane
- Reinforced with non-woven polyester felt sheet membrane
- Mineral finishing, designed for RC roof surface
S3000-TA
Formerly known as SM Bitumen S3000
- Atactic polypropylene (APP) modified bitumen waterproofing membrane
- Reinforced with non-woven polyester felt sheet membrane
- Sand finishing, exclusive for RC roof surface
BITUSELF
Formerly known as Nippon SM Self Adhesive
- Dual functions: as waterproof and vapor-proof
- Cold apply, self-adhesive and easy to apply
- Good puncture resistance

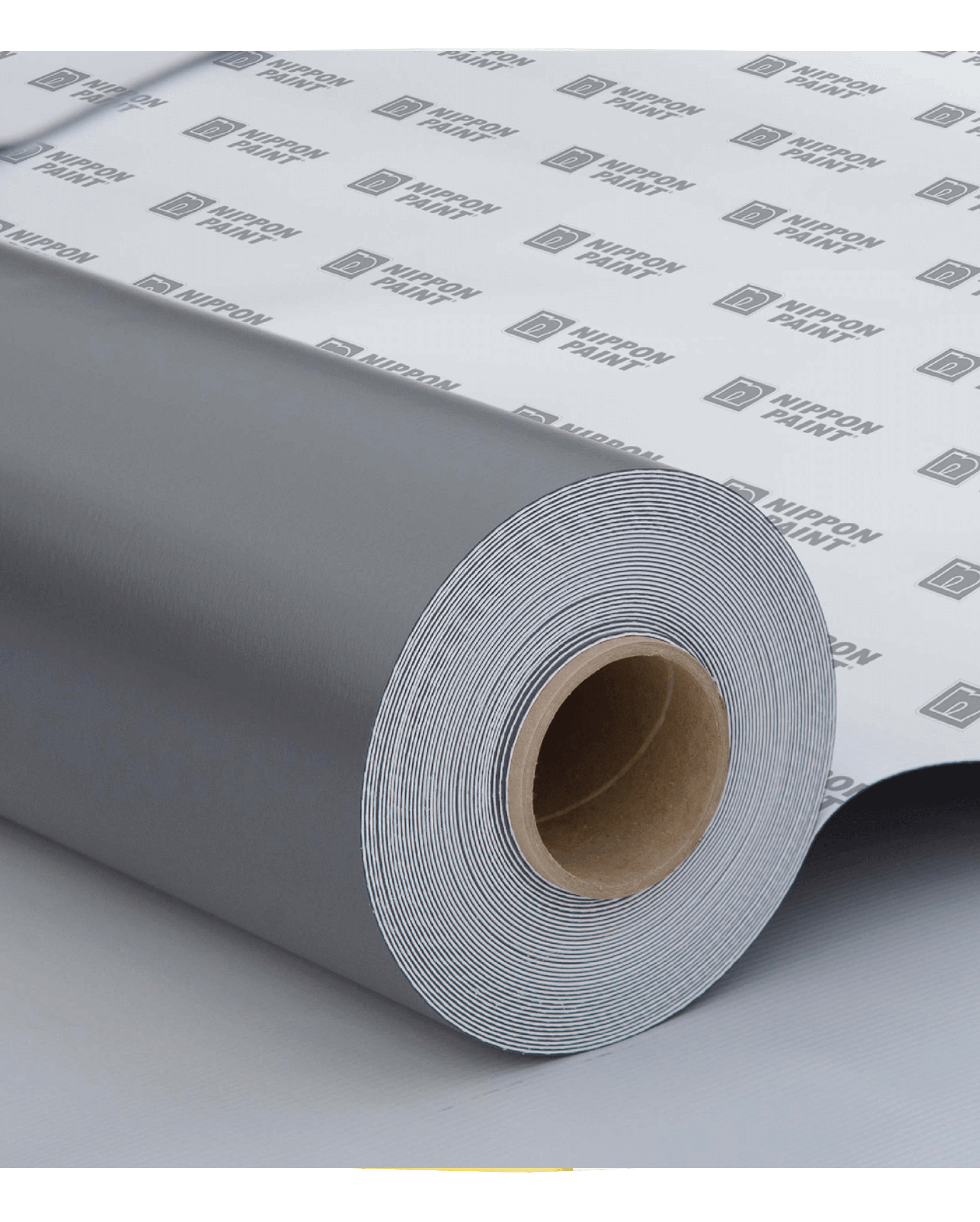

ROOFLEX TP
Formerly known as SM TPO
- Eco-friendly, synthetic single-ply roofs waterproofing sheet membrane
- Provides durability, designed for exposed flat roofing and detailing
- Available in white or grey two colours, for easy damage identifications
ROOFLEX PP/PLUS
Formerly known as SM PVC PP / PPL
- Synthetic plastic waterproofing sheet
- Made from high-quality PVC for enhanced performance and longevity
- Extra resistance against accidental punctures and damage when applied to horizontal areas
POOLFLEX
Formerly known as SM PVC POOL Lining
- Polyvinyl chloride (PVC) based with added chemical protection layer
- Designed for enhanced durability and chemical resistance
- Safe for use in pool environments, with anti-skid properties
HD2000
Formerly known as SM HDPE
- Premium quality polyethylene resin
- Helps sustain water quality
- Ideal for preventing seepage and providing effective waterproofing in roofing and basement systems
DPM HD
Formerly known as Nippon Geomembrane
- High tear strength, puncture resistant, elongation and flexibility
- Biological resistance-unaffected by bacteria, fungi, etc.
- Chemical resistance-to all naturally occurring subsoil alkalis and acids
BASEFLEX PRE1200 PLUS
Formerly known as SM PRE 1200 PLUS
- Made from high-density polyethylene (HDPE)
- Easy installation with selvedge overlaps
- Designed for use below ground to shield structures from harmful environmental factors
DPM LD300
- Multi-purpose, suitable be used in above-grade and below-grade construction
- Easy to apply and rapid application rate
- Simple on-site overlap sealing with adhesive tape
BASEFLEX PP
Formerly known as SM PP300
- High-density polyethylene (HDPE)
- Easy installation with selvedge overlaps
- Designed to safeguard below-ground structures from various environmental hazards
Overview of Preformed Sheet Membrane
| SYSTEMS | EXPOSED ROOF | |
|---|---|---|
| Product |
ROOFLEX PP1500Formerly known as SM PVC PP1500 |
M4000-TAFormerly known as SM Bitumen M4000 |
| Product | 1.5mm | 4.5kg Mineral |
| Technology | Polyester Reinforced Polyvinyl Chloride (PVC) Membrane | Atactic Polypropylene (APP) Modified Bituminous Membrane, with mineral finishing |
| Application | Loosely laid mechanical fastening hot-air welding | Torch Apply |
| CHARACTERISTIC | ||
| Weather Resistance | Excellent | Good |
| Flexibility | Excellent | Good |
| Mechanical & Impact Load Resistance | Excellent | Good |
| Puncture Resistance | Excellent | Good |
| Tear Resistance | Excellent | Good |
| Standards / Compliance | • Green Label SGLS 032 • JKR Green Directory |
- |
| Packaging | 2m(W) x 20m(L) or 40 m2 / roll | 1m(W) x 10m(L) or 10 m2 / roll |
| SYSTEMS | CONCEAL ROOF |
|---|---|
| Product |
S3000 TAFormerly known as SM BITUMEN S3000 |
| Properties | 3mm |
| Technology | Atactic Polypropylene (APP) Modified Bituminous Membrane, with sand finishing |
| Application | Torch Apply |
| CHARACTERISTIC | |
| Weather Resistance | Has to be protected |
| Flexibility | Good |
| Mechanical & Impact Load Resistance | Good |
| Puncture Resistance | Good |
| Tear Resistance | Good |
| Standards / Compliance | - |
| Packaging | 1m(W) x 10m(L) / roll or 10 m2 / roll |
