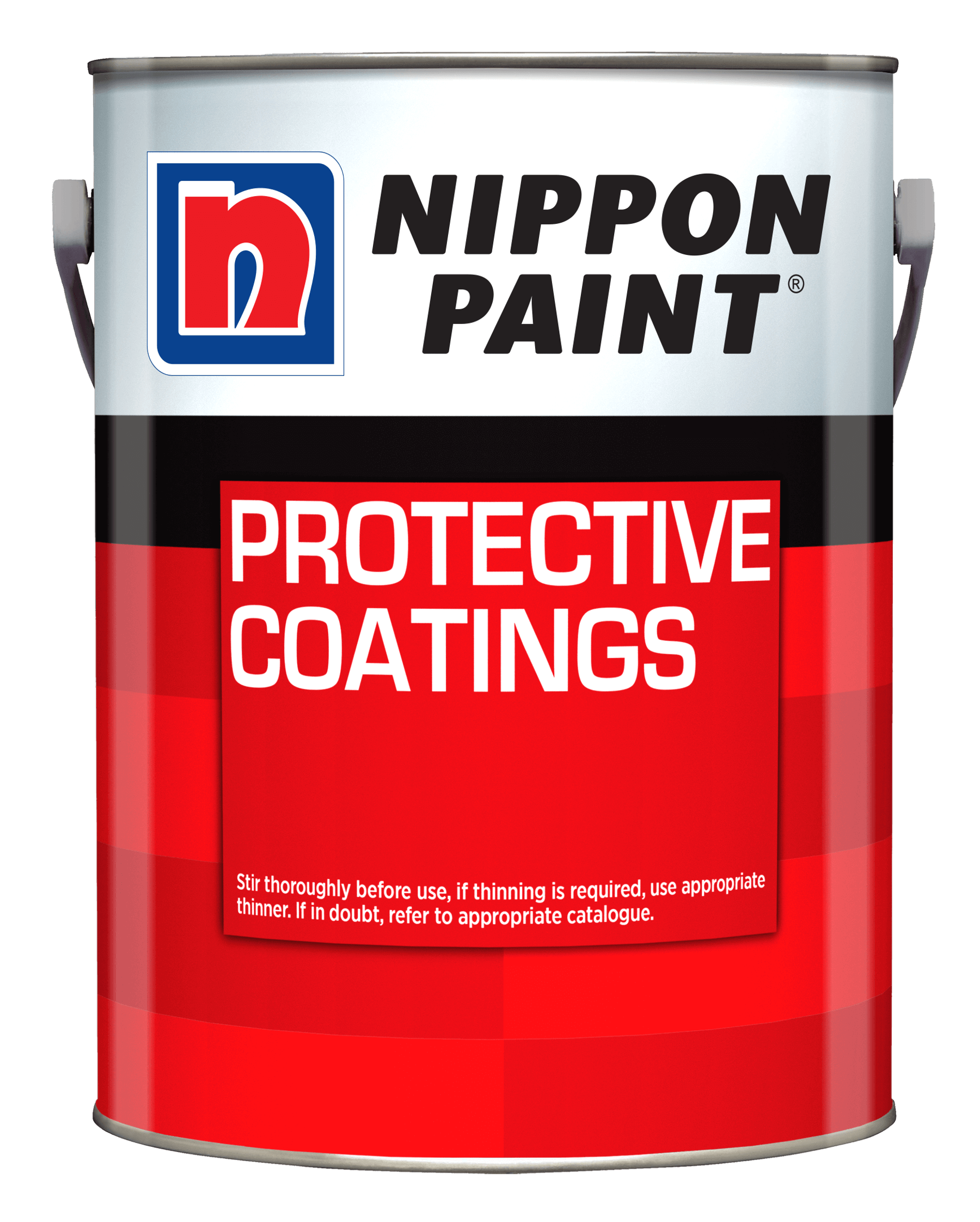

NIPPON PAINT HI-PON 80-04 EPOXY PHENOLIC TOPCOAT is a two-pack epoxy phenolic coating for blast cleaned and primed steel surfaces. It has a wide range of chemical resistance properties which has makes it a durable, high performance coating for steelwork and concrete surface with immersion as well as non-immersion services. It is designed for long term corrosion protection lining of storage tank for a wide range of chemicals, solvents, crude oil, aggressive palm oil and vegetable oil derivatives.
Product Features:
• Outstanding resistance to aqueous solutions and a wide range of industrial chemicals
• Certified to BS 6920 for contact with portable water
• Tested in accordance with EI standard 1541, Section 2.2 and 3 for Aviation Fuel Storage Tanks and Piping
• Tested in accordance with Defence Standard 80-97 Issue 5 Annex B
Coating System
| Internal Tanks / Silo | ||
|---|---|---|
| Type | Product Name | No. of Coat(s) |
| Primer/Sealer | Nippon Paint Hi-Pon 80-03 Epoxy Phenolic Primer | 1 coat |
| Intermediate | Nippon Paint Hi-Pon 80-04 Epoxy Phenolic Topcoat | 1 coat |
| Topcoat | Nippon Paint Hi-Pon 80-04 Epoxy Phenolic Topcoat | 1 coat |
Application Data
| Application | Brush/Roller, Compressed Air Spray, or Airless Spray (preferably use if a thicker coat is required in one application) |
| Thinning | Thinner: Hi-Pon Epoxy Thinner Brush/Roller: If necessary, add about 5% thinner by volume Compressed Air Spray: If necessary, add about 10-15% thinner by volume |
| Touch Dry/ Hard Dry | 30-40 minutes / 4-5 hours |
| Recoating Interval | Minimum 8 hours |
| No. of Coat(s) | 1-2 coats |
| Theoretical Coverage | 3.25 - 6.5 m²/litre |
