Roofs
Waterproofing Solutions
Exposed Roof

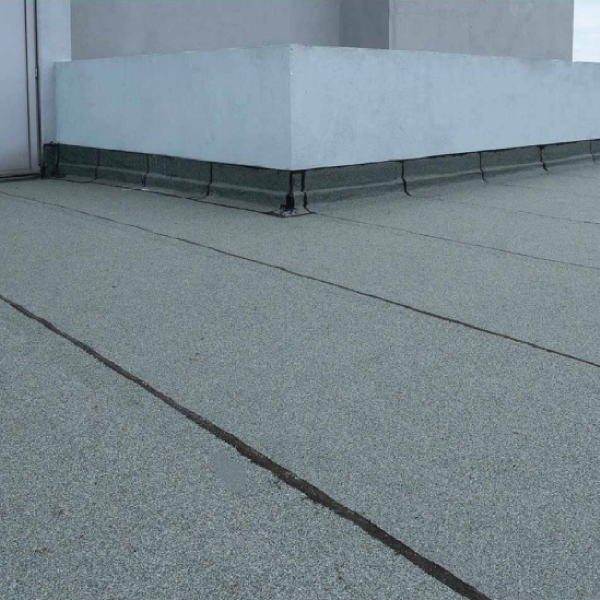

Most roofs in Malaysia are constructed using reinforced concrete (RC), which has pores or capillary tracts. The number of pores can vary depending on the designed strength, density, and installation techniques. These interconnected pores allow water to penetrate the concrete via an osmotic effect. Since concrete is inherently weak in tension, cracks and voids can form due to thermal expansion, contraction, and shrinkage, allowing water to seep through. Therefore, waterproofing is essential to prevent water leaks through exposed concrete slabs, as they are exposed to weather conditions.
Choose Your Roof Type
Small to Medium Roof & Terraces

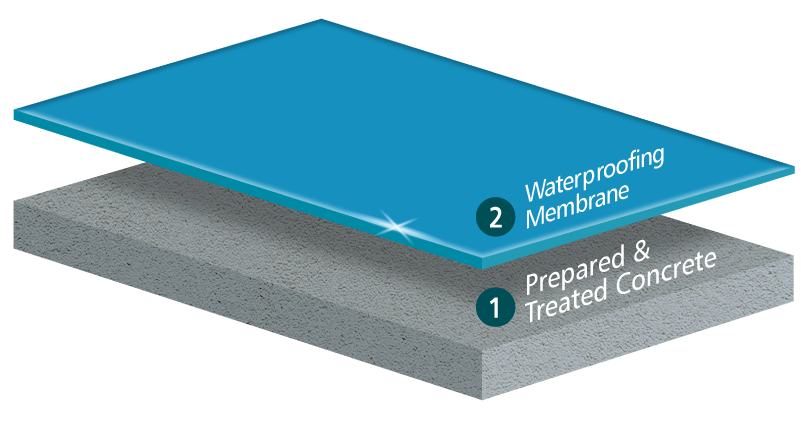

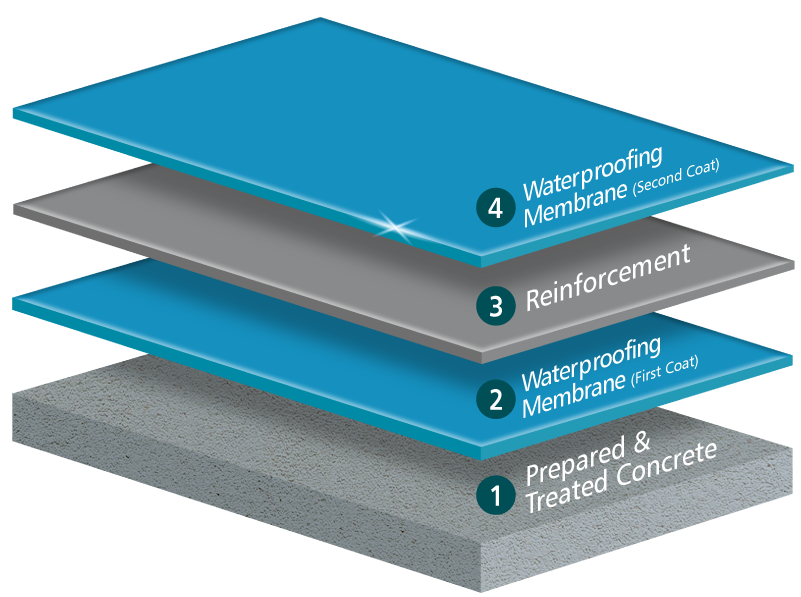

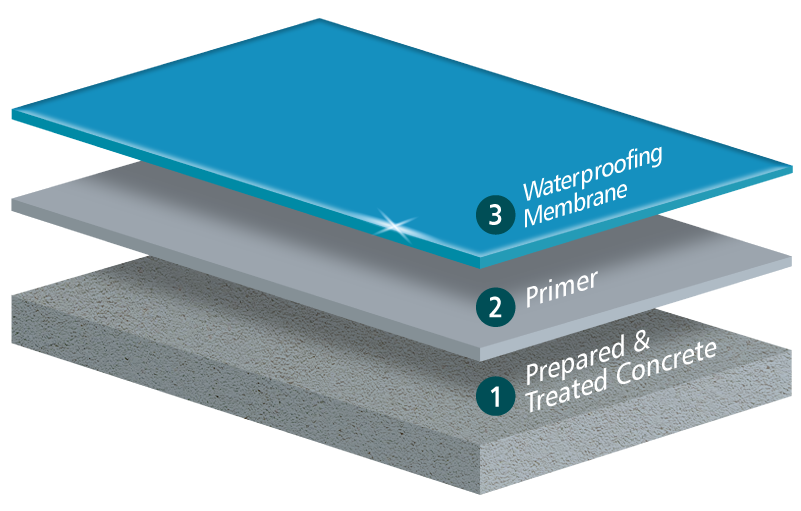

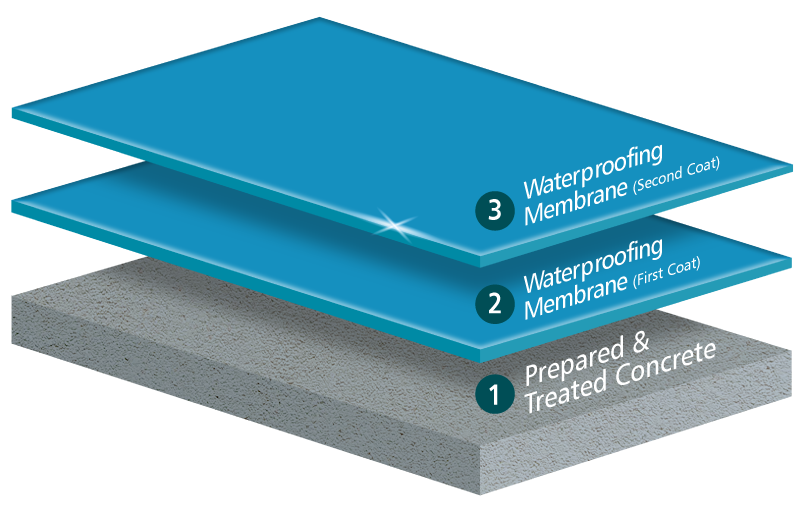

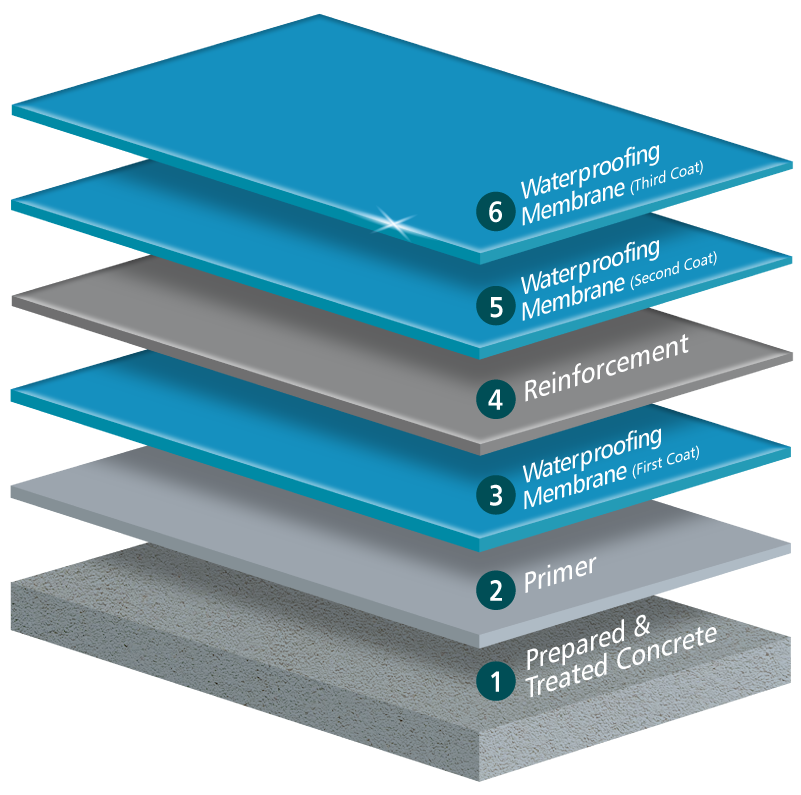

Waterproofing System Build Up
Prepared and Treated Concrete
Primer

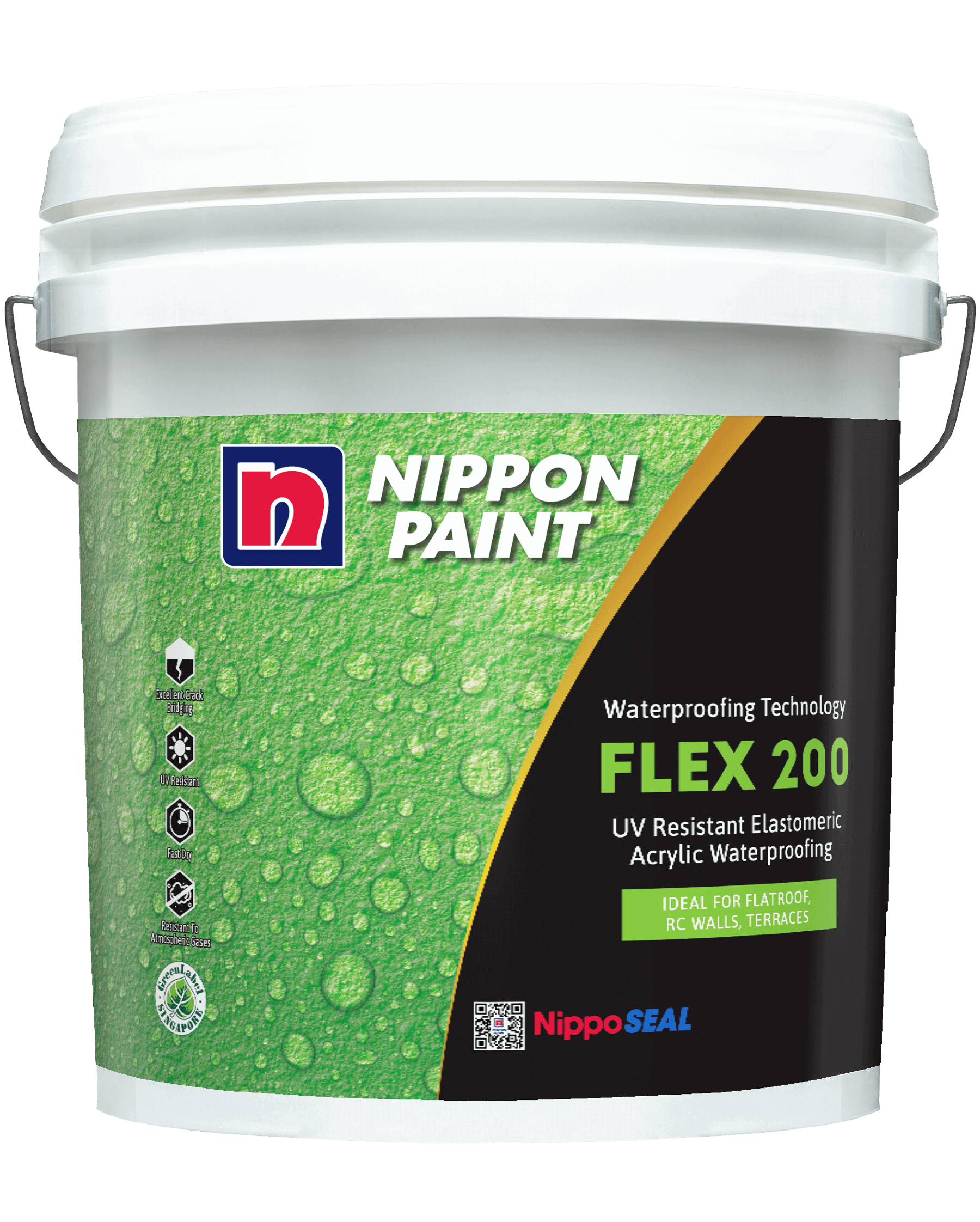

NippoSEAL FLEX 200
(as primer up to 1:1 water dilution)
- Elastomeric
- Breathable
- High build
Waterproofing Membrane
(First Coat)
NippoSEAL FLEX 200
- Elastomeric
- Breathable
- High build
Reinforcement
Nippon Paint LM MAT
- Easy to apply
- Superior acid resistance
- High mechanical strength
Waterproofing Membrane
(Second Coat)
NippoSEAL FLEX 200
- Elastomeric
- Breathable
- High build
Waterproofing Membrane
(Third Coat)
NippoSEAL FLEX 200
- Elastomeric
- Breathable
- High build
Need a Waterproofing Solution for Your Roofs Waterproofing Project?
Talk to us today for expert recommendations and find the high performance solutions for your exposed roof.
Recommended Areas
Conceal Roof
In concealed roofs, the waterproofing membrane is equally important, as it ensures that water does not penetrate the building. The choice of waterproofing material depends on the roofing system design. Proper waterproofing in concealed roofs helps maintain the structural integrity and prevents moisture-related damage within the building.
Choose Your Roof Type
Small to Medium Roof & Terraces

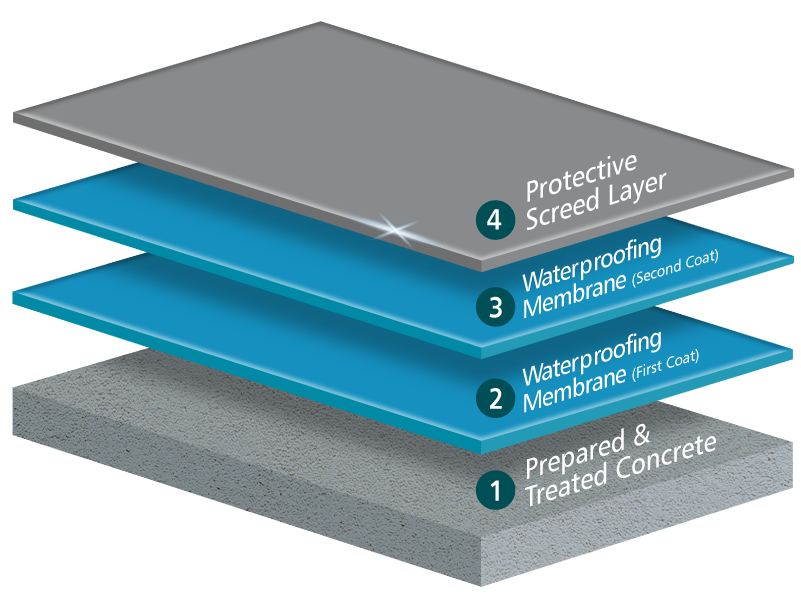

Waterproofing System Build Up
Prepared and Treated Concrete
Waterproofing Membrane
(First Coat)

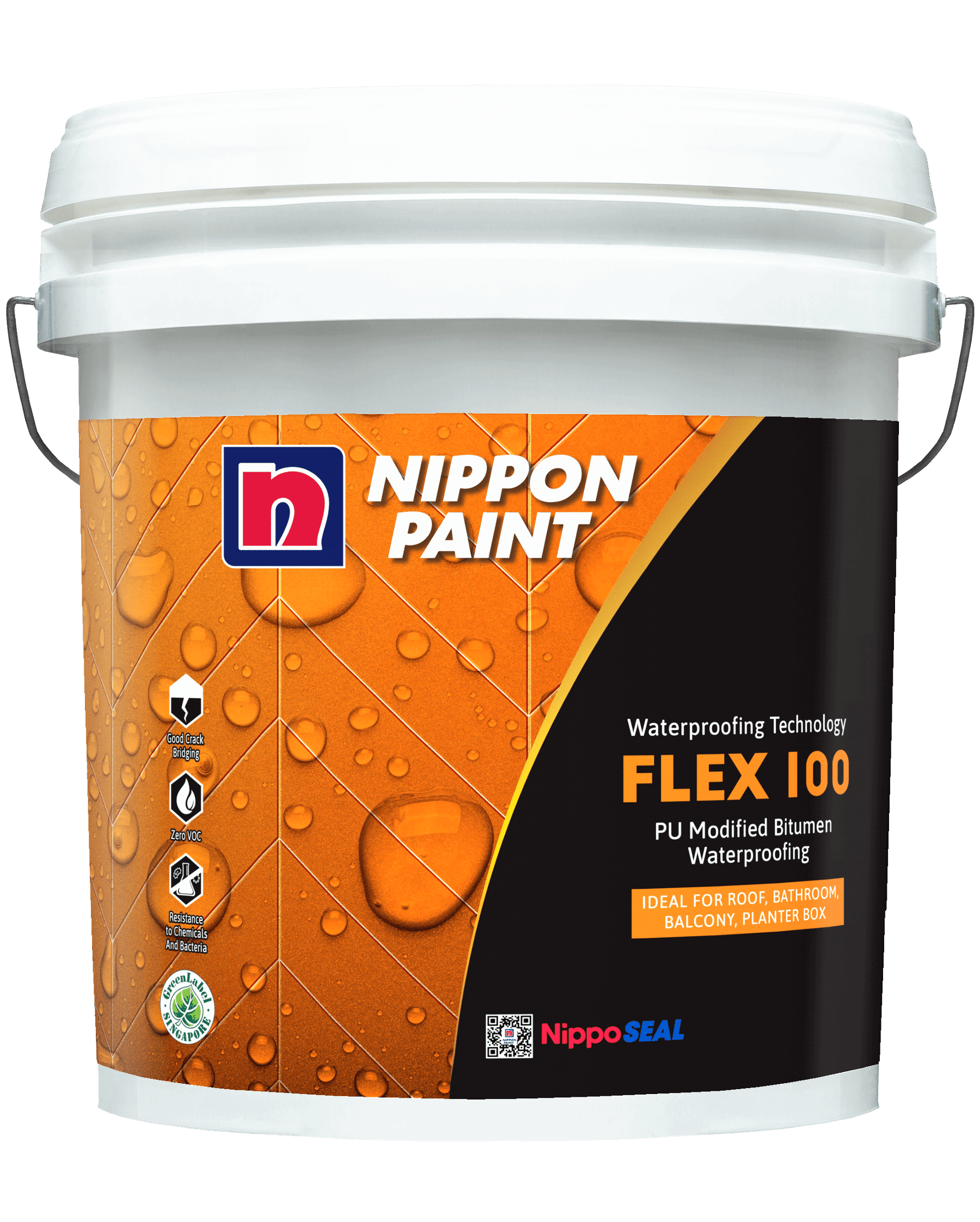

NippoSEAL FLEX 100
- High build
- Chemical resistance
- Anti-water migration
Waterproofing Membrane
(Second Coat)
NippoSEAL FLEX 100
- High build
- Chemical resistance
- Anti-water migration
Protective Screed Layer
CMI® FloorScreed 085
- Premixed with good and consistent quality
- Good workability and and high compressive strength with good shrinkage cracks control
- Durable and good weather resistance

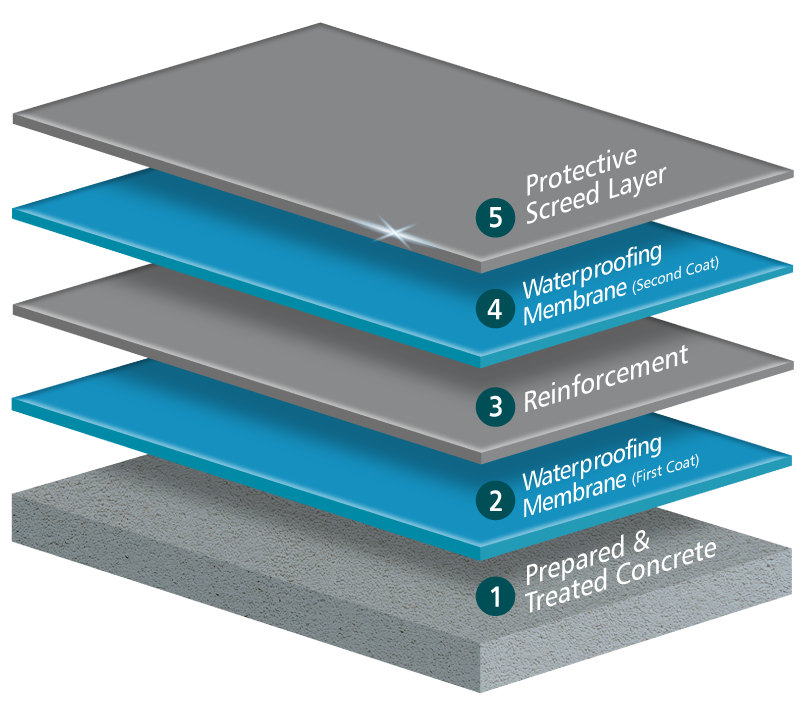

Prepared and Treated Concrete
Waterproofing Membrane
(First Coat)
NippoSEAL FLEX 100
- Anti-water migration
- Chemical resistance
- Anti-water migration
Reinforcement
Nippon Paint LM MAT
- Easy to apply
- Superior acid resistance
- High mechanical strength
Waterproofing Membrane
(Second Coat)
NippoSEAL FLEX 100
- Highly elastomeric
- Crack bridging
- High build
Protective Screed Layer
CMI® FloorScreed 085
- Premixed with good and consistent quality
- Good workability and and high compressive strength with good shrinkage cracks control
- Durable and good weather resistance
Need a Waterproofing Solution for Your Roofs Waterproofing Project?
Talk to us today for expert recommendations and find the high performance solutions for your conceal roof.
Recommended Areas

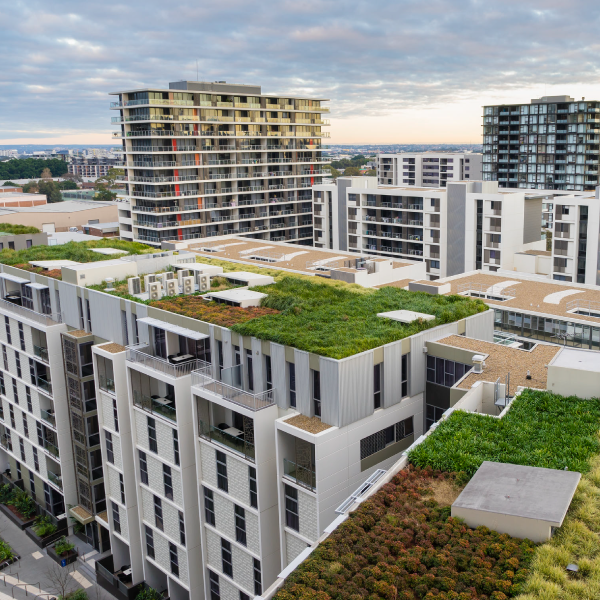

Green Roof
A green roof is another roofing type where waterproofing is vital. These roofs are designed to support vegetation, but the added layer of plants and soil requires a strong waterproofing system to prevent water leakage and protect the structure. The selection of appropriate materials is crucial for maintaining the green roof’s functionality and longevity.
Green Roof System Build Up
Prepared and Treated Concrete
Primer
Nippon Paint PUREA-PRIME
- Compatible with wide range of topcoats
- Low odor during application
- Damp tolerant
Waterproofing Membrane
(First Coat)
NippoSEAL PUREA-SA
- Highly elasticity
- Corrosion resistance
- Abrasion resistance & Anti-root
Insulation Board
NippoGARD THERMA XPS
- Excellent insulation performance
- Excellent flame-retardant performance (B1)
- Excellent impact resistance
Drainage Board
Waterproofing Membrane
(Second Coat)
NippoGARD GEOTEX 150
- High flexibility to accommodate movements
- Excellent dimensional stability under tension
- High resistance to positive water and vapor pressure
Need a Waterproofing Solution for Your Roofs Waterproofing Project?
Talk to us today for expert recommendations and find the high performance solutions for your green roof.
Recommended Areas

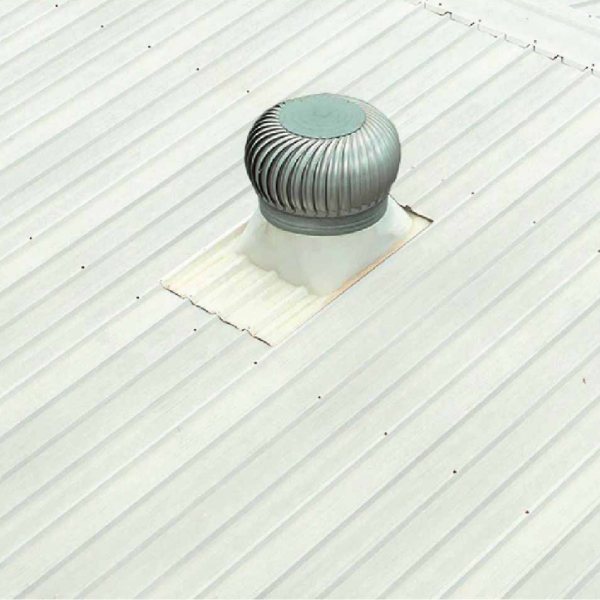

Metal Roof
Metal roofs also require waterproofing to ensure no water penetration, especially at joints or fasteners. Although metal is resistant to water, proper sealing and membrane application prevent leaks that could compromise the roof's performance over time. The waterproofing system selected for metal roofs must cater to the specific requirements of the metal type and roof design.
Metal Roof System Build Up
Prepared and Treated Concrete
Primer
Nippon Paint PRIMET
- Good waterproofing performance
- Breathable
- Good adhesion to wet surface and green concrete
Waterproofing Membrane
(First Coat)
NippoSEAL SPARTIC-HA MID COAT
- Solvent-free, environmentally friendly
- Excellent tensile and elongation
- Fast dry
Waterproofing Membrane
(Second Coat)
NippoSEAL SPARTIC-HA
- Solvent-free, environmentally friendly
- Excellent tensile and elongation
- Fast dry
Need a Waterproofing Solution for Your Roofs Waterproofing Project?
Talk to us today for expert recommendations and find the high performance solutions for your metal roof.
Recommended Areas
